Rada Pulse 120 Sensor Operating System - for Showers & Basins

Rada Pulse 120 Sensor Operating System – for Showers & Basins

(For showers & basins)

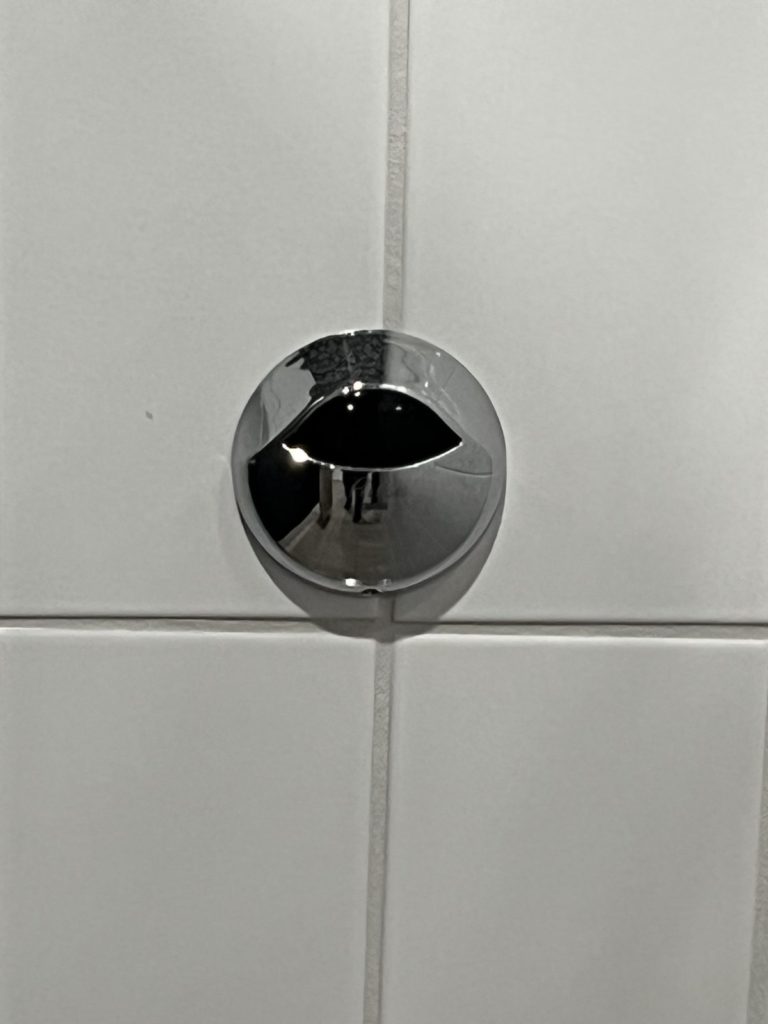

Installed as part of the Rada Pulse kit, the Rada 120 sensor adds an elegant finish to modern washrooms. This sensor can be used for basins or showers.

WELS: 6 stars | 6 l/min (basins) | AS/NZS 3718

Programmable flow time and automatic shut-off to save water and energy
No-touch activation of water flow improves user hygiene
Rada Pulse manages up to 10 outlets via a control box and handheld programmer

Product Variants

Click on a Variant(s) below to add to your Fixtures Schedule:

650631 - Rada Pulse 120 sensor operating system – for basins
750634 - Rada Pulse 120 sensor operating system – for showers

Applications

Gyms, aquatic & leisure centres
Surgical scrub areas, food processing & restaurants
Restaurants and office blocks
End of trip facilities

Downloads

BIM & CAD

Specify as Follows

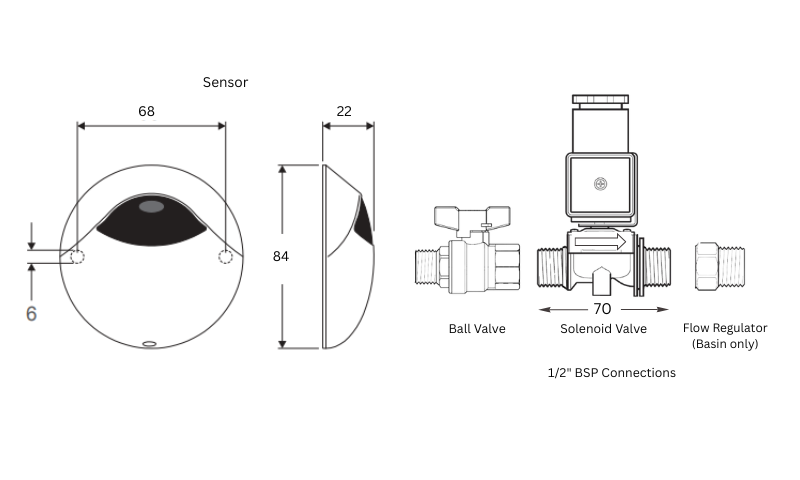

Each outlet (basin or shower) to be served by one wall mounted Rada Pulse (or Mono) 120 sensor operating system for ‘no-touch’ flow control. Complete with active infra-red sensor, 1/2” BSPM solenoid valve, isolating ball valve and 6 L/Min flow regulator (basins only). Shower flow rate is determined by shower head.
