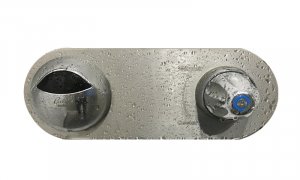

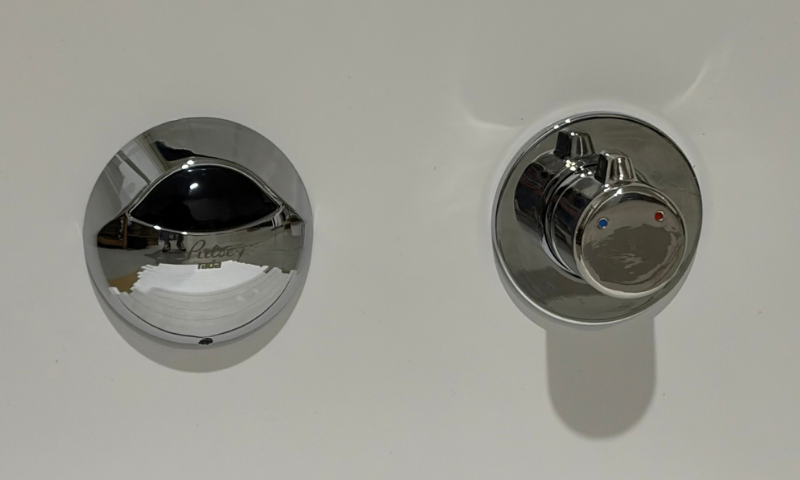

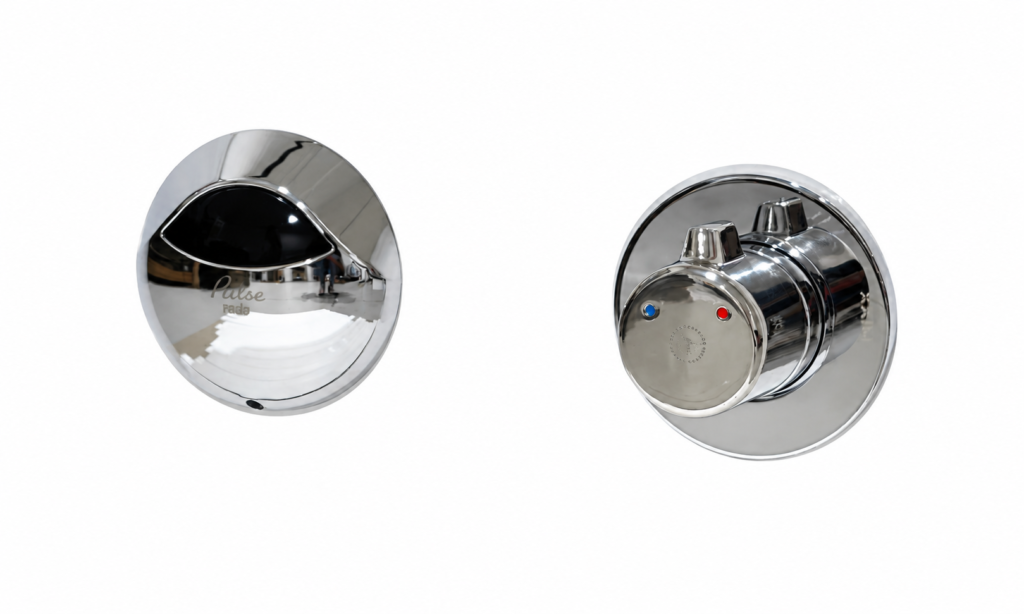

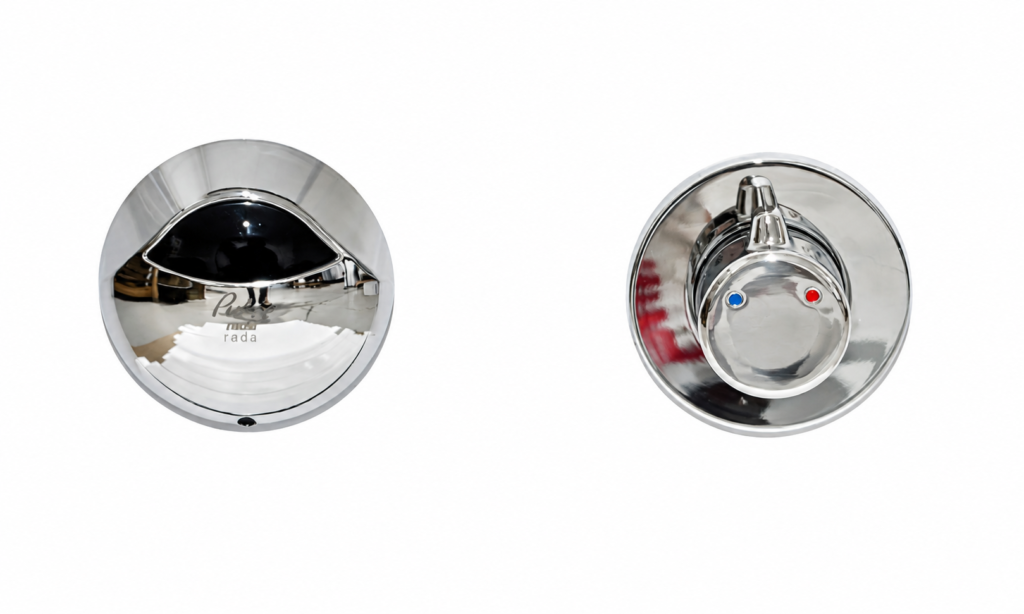

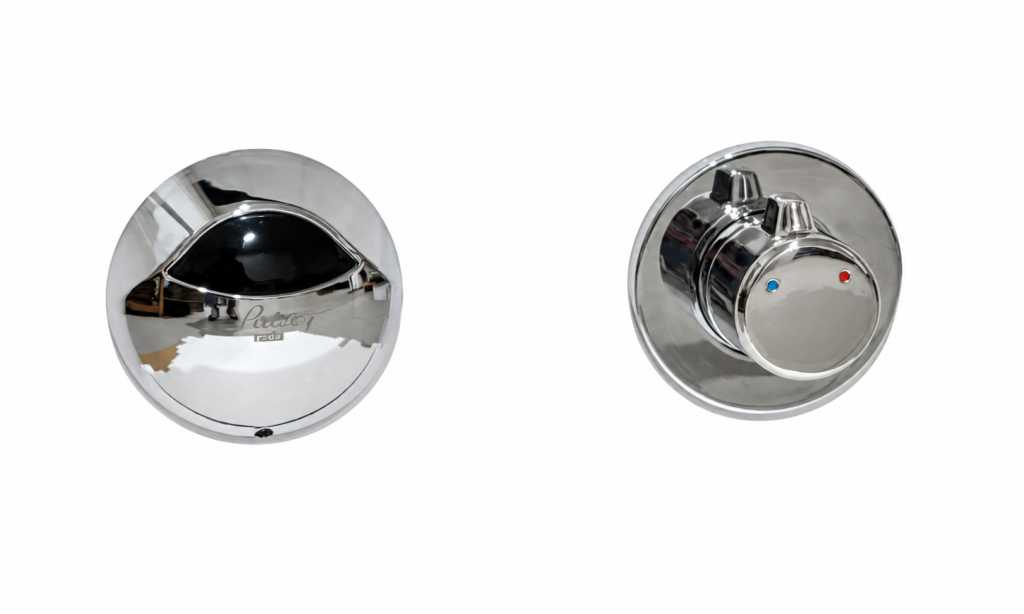

Rada Pulse 120 sensor operating system with temperature adjustment kit – for showers, enables end-users to adjust the warm water temperature of the shower.

• Provides simple temperature adjustment of the shower by the end user
• Pulse system has programmable flow time and automatic shut off to save water and energy
• To be installed with Rada Pulse Control Box
• Rada Pulse manages up to 10 outlets via a control box and handheld programmer
• Sensor system approved to AS/NZS 3718

Applications

• Gyms, aquatic & leisure centres
• End of trip facilities

Downloads

• Installation Instructions - Rada Pulse 120 Temperature Adjustment
• Product Manual - Rada Pulse
• Brochure - Rada Pulse and Mono
• Specification - Rada Pulse 120 Operating System

Specify as Follows

Each shower outlet to be served by one wall mounted Rada Pulse 120 sensor operating system with temperature adjustment kit – for showers, which incorporates flow control. Complete with active infra-red sensor, 1/2” BSPM solenoid valve, isolating ball valve and vandal resistant top assembly and etched stainless steel escutcheon plate. Shower flow rate is determined by shower head. Sensor system approved to AS/NZS 3718.
